Standard, installation depth <1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Volume 1000 L
Material PE

Underground tank for wastewater treatment plant Aquamax 12PE
Reinforced, installation depth <2,5 m from terrain to the bottom of the inlet pipe
Volume 9000 L
Material PE

Underground tank for wastewater treatment plant Aquamax 12PE
Standard, installation depth <1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Volume 8700 L
Material PE

Class I according to EN858-1 standard
Material: double-wall polyethylene
Flow rate: 65 l/s
Sludge trap size: 6500 L
Coalescing material resistant against plugging by solids
Oil alarm - optional

Reinforced, installation depth <2,5 m from terrain to the bottom of the inlet pipe
Volume 10000 L
Material PE

Standard model
Class I according to EN858-1 standard
Flow rate 6 l/s (NS6)
Sludge trap size 1200 L
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene
Sorption filter

Standard model
Class I according to EN858-1 standard
Flow rate 6 l/s (NS6)
Sludge trap size 600 L
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene
Sorption filter

Reinforced model
Class I according to EN858-1 standard
Flow rate 6 l/s (NS6)
Sludge trap size 600 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene
Sorption filter

Reinforced model
Class I according to EN858-1 standard
Flow rate 6 l/s (NS6)
Sludge trap size 1200 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene
Sorption filter

Standard model
Class I according to EN858-1 standard
Flow rate 3 l/s (NS3)
Sludge trap size 600 L
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene
Sorption filter

Reinforced model
Class I according to EN858-1 standard
Flow rate 3 l/s (NS3)
Sludge trap size 600 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene
Sorption filter

Standard model
Class I according to EN858-1 standard
Flow rate 10 l/s (NS15)
Sludge trap size 2000 L
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene
Sorption filter

Reinforced model
Class I according to EN858-1 standard
Flow rate 10 l/s (NS10)
Sludge trap size 2000 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene
Sorption filter

Standard model
Class I according to EN858-1 standard
Flow rate 1,5 l/s (NS1,5)
Sludge trap size 600 L
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene

Reinforced model
Class I according to EN858-1 standard
Flow rate 1,5 l/s (NS1.5)
Sludge trap size 600 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene
Sorption filter

Class I according to EN858-1 standard
Material: double-wall polyethylene
Flow rate: 40 l/s
Sludge trap size: 13000 L

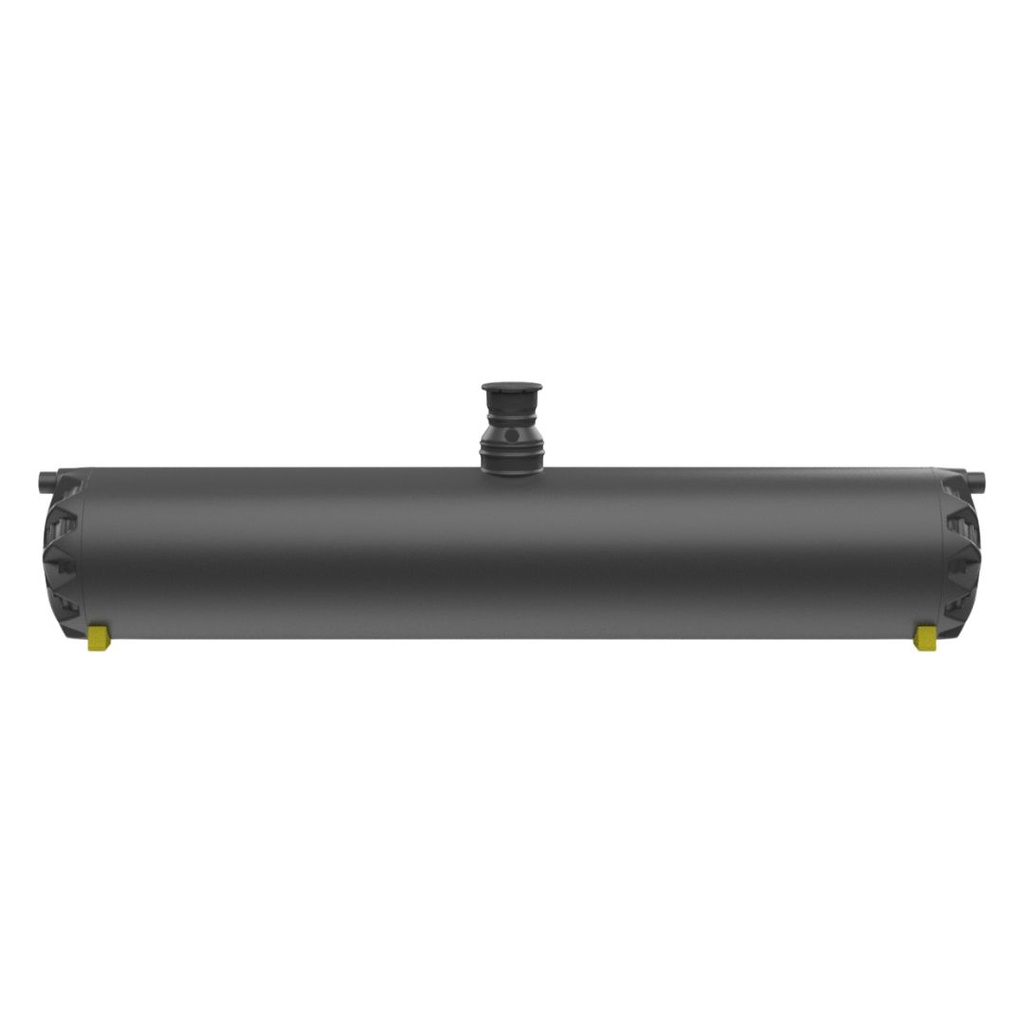

Material: Polyethylene
Stiff structure from double-wall profile
Volume: 45000 L

Class I according to EN858-1 standard
Material: double-wall polyethylene
Flow rate: 80 l/s
Sludge trap size: 8000 L

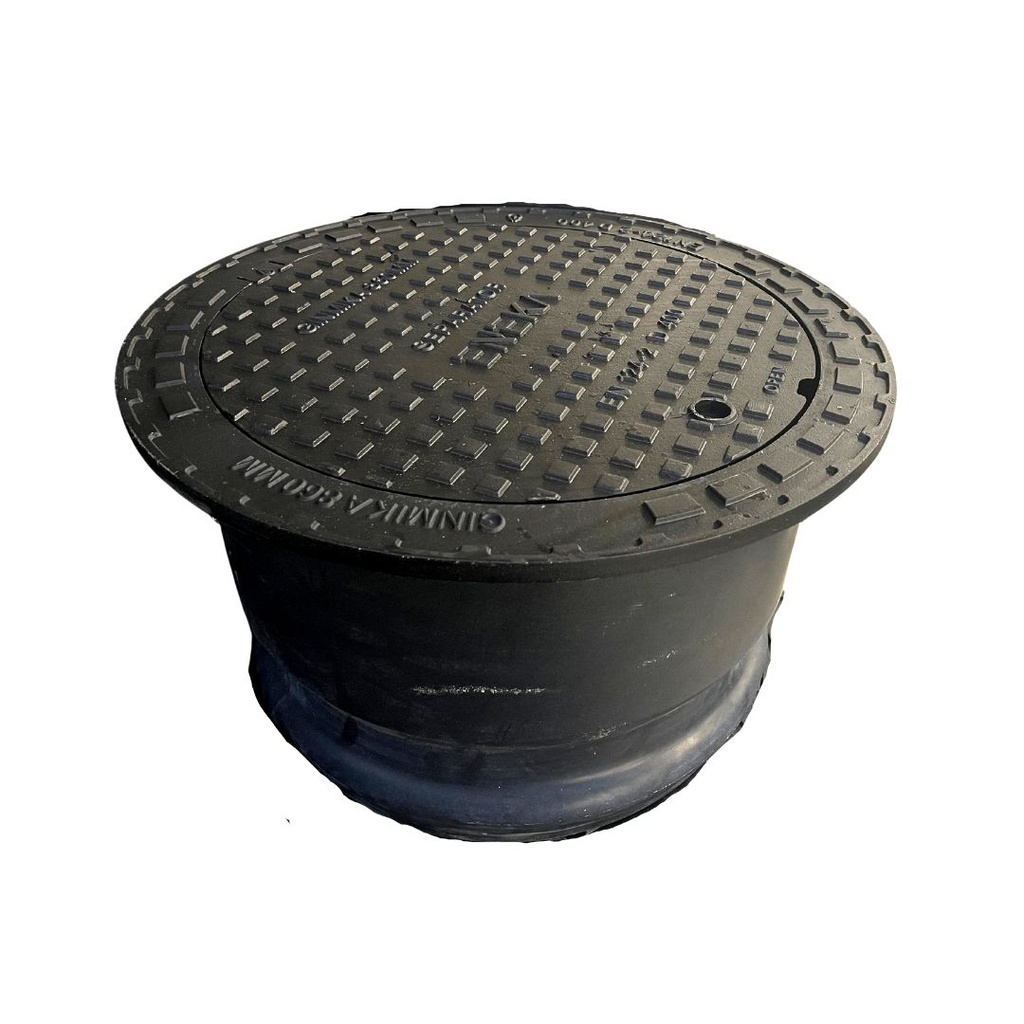

Cast/Ductile Iron lid
Airtight execution with gasket
Class D400 (40 t) acc. EN124 standard
clear opening 600 mm
including telescopic part TP and seal

Cast/Ductile Iron lid
Load class B125 (12,5 t) acc. EN124 standard
clear opening 600 mm
including telescopic part TP and seal

Class I according to EN858-1 standard
Material: double-wall polyethylene
Flow rate: 30 l/s
Sludge trap size: 6000 L

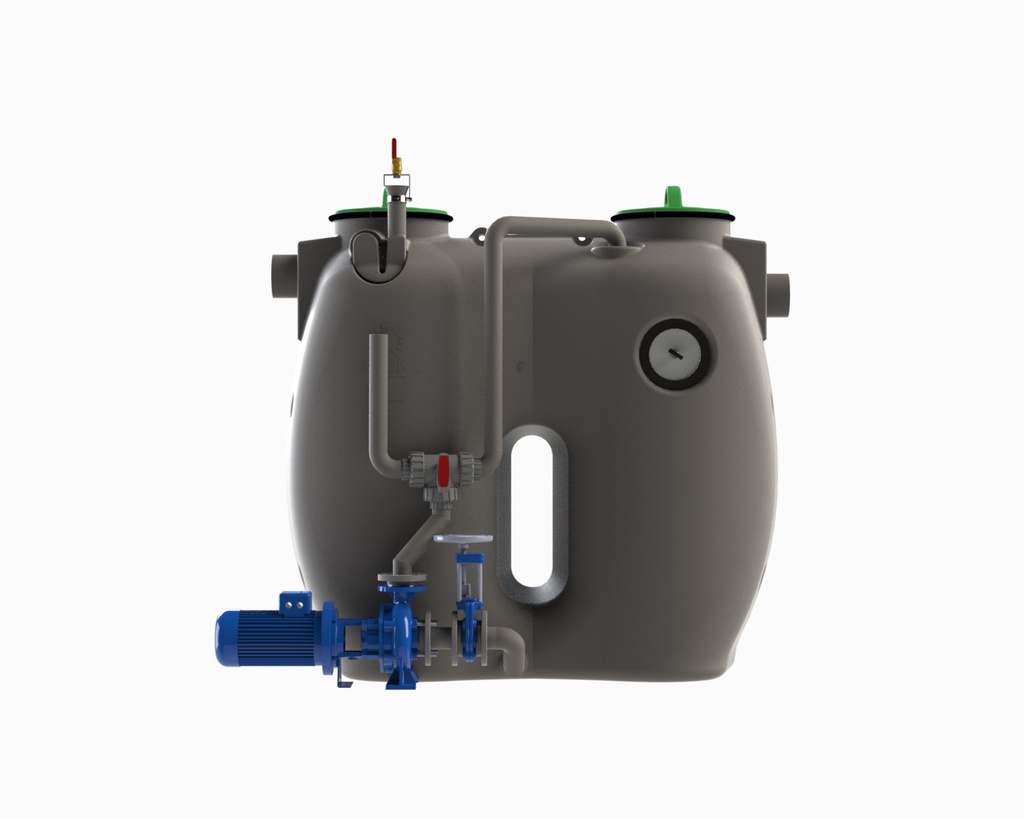

- Separator body made of double-wall PE
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Manual Refilling Unit, incl. syphon with retainer, ball valve with bracket
- Switchover valve Mixing-Disposal
- Shut-off / Gate valve at the pump inlet
- Mixing & Disposal pump, heavy-duty macerator type, motor 2.6/2.3 kW 400V 50/60Hz, lifting head 19.5m
- Manual Pump Controller incl. 3ph switch, phase sequence & thermal relays
- Flow rate: 15 L/S
- Sludge trap capacity: 1500 L
- Total capacity 3300 L

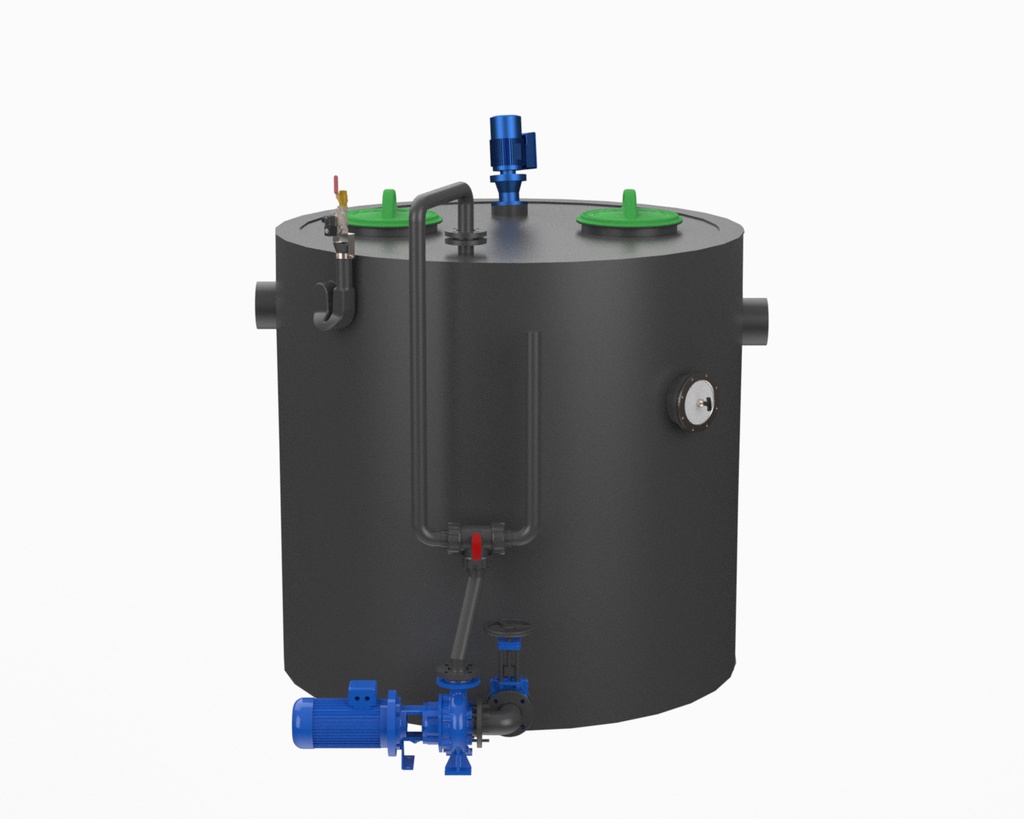

- Separator body made of PE
- Watertight / seamless one-piece body
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Manual Refilling Unit NS25, incl. syphon with & ball valve
- Switchover valve: 3-way valve for switching between Mixing & Disposal
- Shut-off / Gate valve DN80 at the pump inlet
- Mixing & Disposal pump, heavy-duty macerator type, motor 2.6/2.3 kW 400V 50/60Hz, lifting head 19.5m
- Manual Pump Controller incl. 3ph switch, phase sequence & thermal relays
- Flow rate: 10 L/S
- Sludge trap capacity: 1000 L
- Total capacity 2076 L

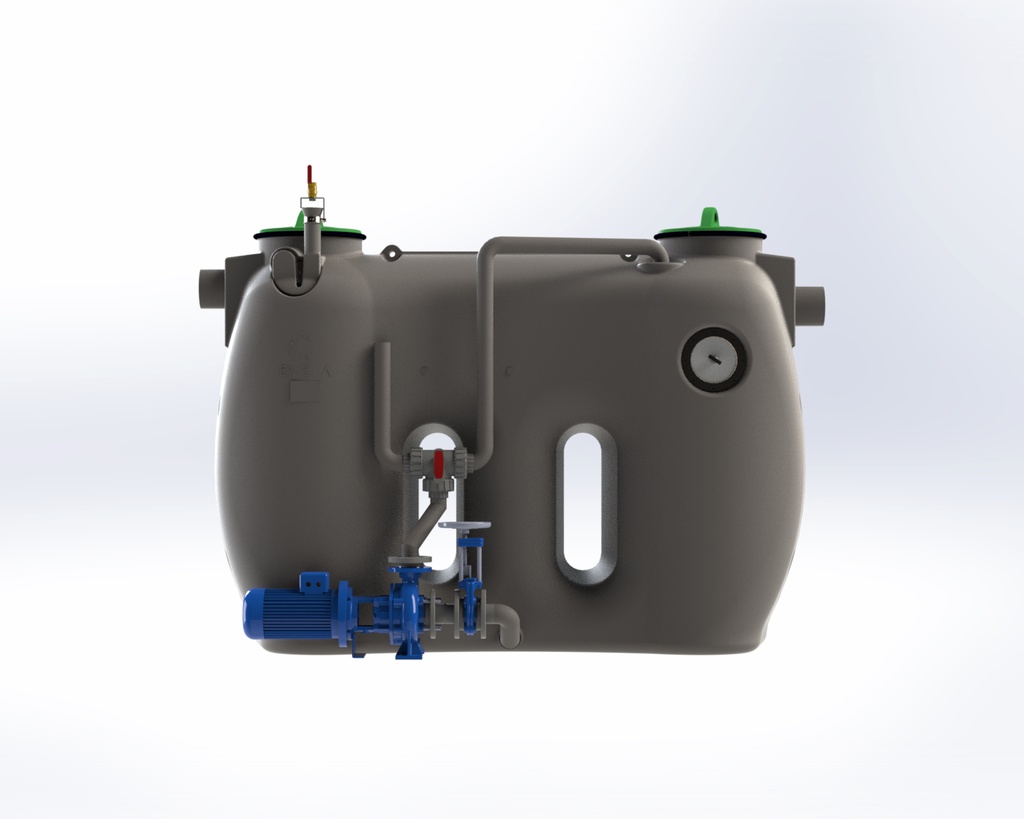

- Separator body made of PE
- Watertight / seamless one-piece body
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Manual Refilling Unit NS25, incl. syphon & ball valve
- Switchover valve: 3-way valve for switching between Mixing & Disposal
- Shut-off / Gate valve DN80 at the pump inlet
- Mixing & Disposal pump, heavy-duty macerator type, motor 2.6/2.3 kW 400V 50/60Hz, lifting head 19.5m
- Manual Pump Controller incl. 3ph switch, phase sequence & thermal relays
- Flow rate: 7 L/S
- Sludge trap capacity: 700 L
- Total capacity 1880 L

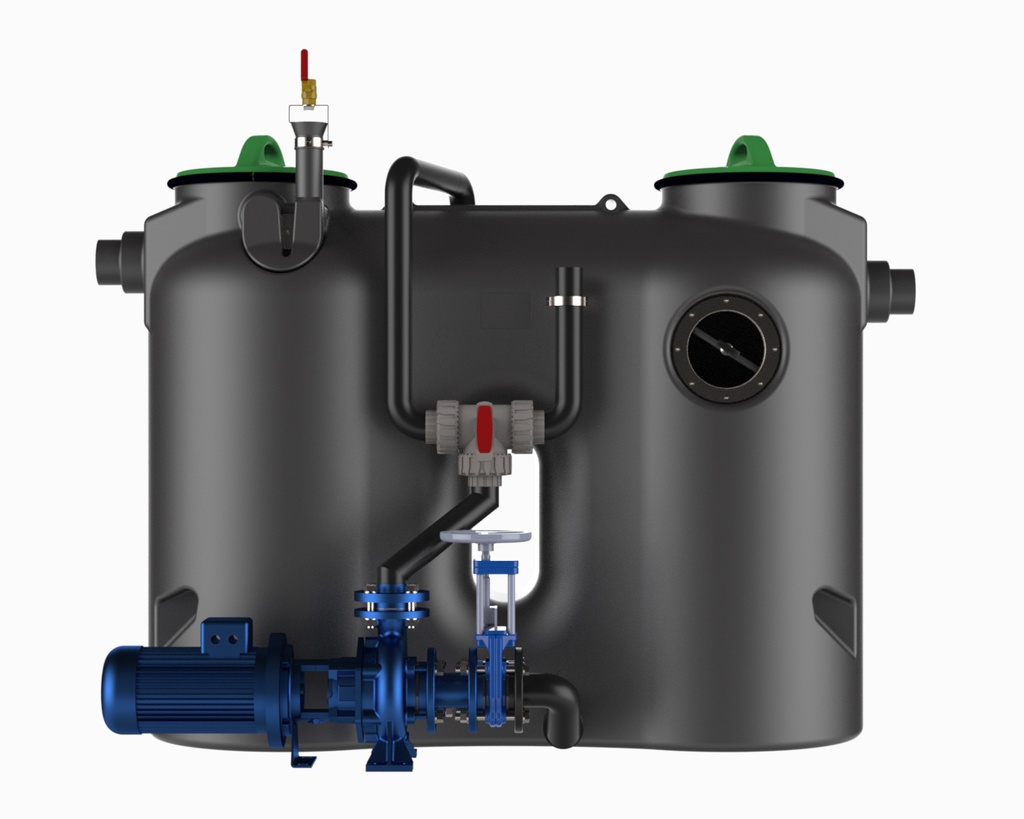

- Separator body made of PE
- Watertight / seamless one-piece body
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Manual Refilling Unit, incl. syphon with retainer, ball valve with bracket
- Switchover valve Mixing-Disposal
- Shut-off / Gate valve at the pump inlet
- Mixing & Disposal pump, heavy-duty macerator type, motor 2.6/2.3 kW 400V 50/60Hz, lifting head 19.5m
- Manual Pump Controller incl. 3ph switch, phase sequence & thermal relays
- Flow rate: 4 L/S
- Sludge trap capacity: 400 L
- Total capacity 850 L

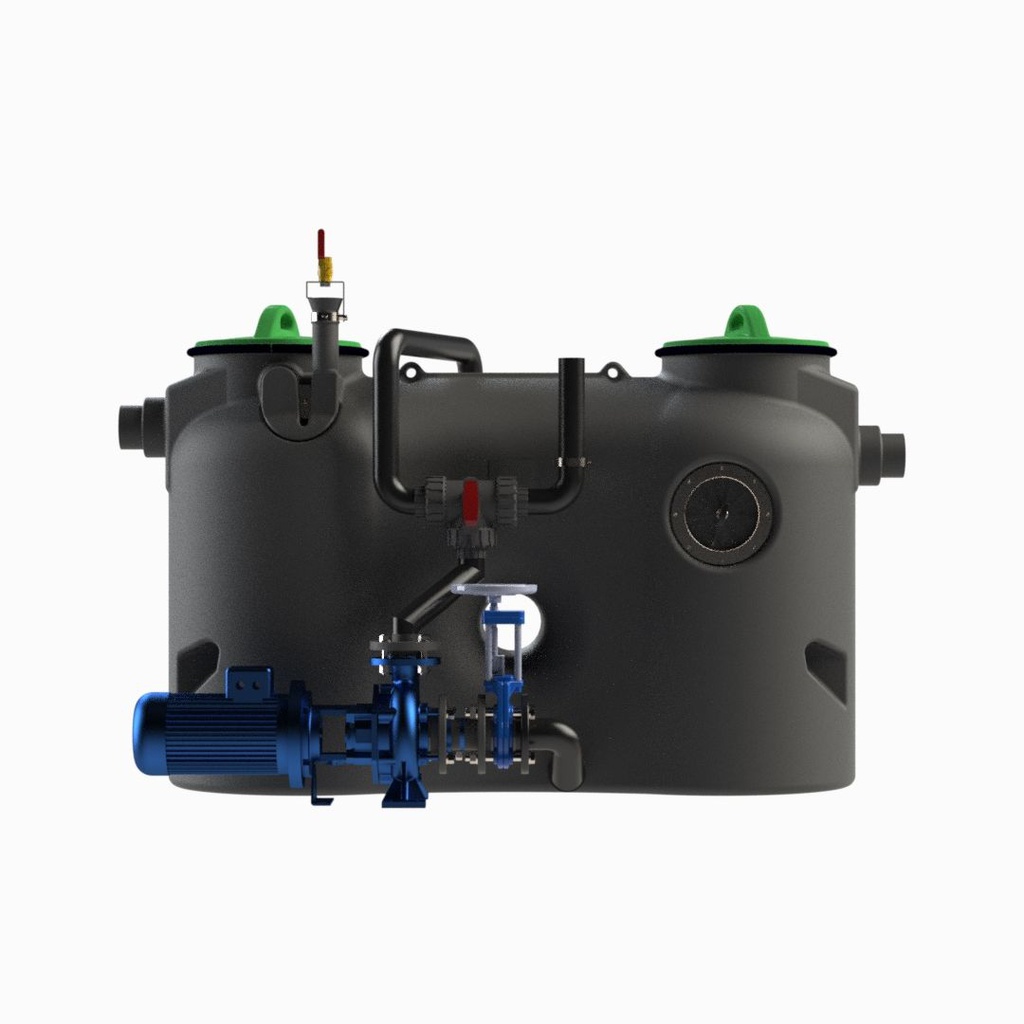

- Separator body made of PE
- Watertight / seamless one-piece body
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Manual Refilling Unit size DN20, incl. syphon & ball valve
- Switchover valve: 3-way valve for switching between Mixing-Disposal
- Shut-off / Gate valve DN65 at the pump inlet
- Mixing & Disposal pump, heavy-duty macerator type, motor 2.6/2.3 kW 400V 50/60Hz, lifting head 19.5m
- Manual Pump Controller incl. 3ph switch, phase sequence & thermal relays
- Flow rate: 2 L/S
- Sludge trap capacity: 200 L
- Total capacity 650 L

Standard model
Class II according to EN858-1 standard
Flow rate 20 l/s (NS20)
Sludge trap size 4000 L
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene

Standard model
Class II according to EN858-1 standard
Flow rate 15 l/s (NS15)
Sludge trap size 3000 L
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene

Standard model
Class II according to EN858-1 standard
Flow rate 10 l/s (NS10)
Sludge trap size 2000 L
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene
