Standard model
Class II according to EN858-1 standard
Flow rate 6 l/s (NS6)
Sludge trap size 1200 L
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene

Standard model
Class II according to EN858-1 standard
Flow rate 30 l/s (NS30)
Sludge trap size 3000 L
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene

Standard model
Class II according to EN858-1 standard
Flow rate 20 l/s (NS20)
Sludge trap size 2000 L
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene

Standard model
Class II according to EN858-1 standard
Flow rate 10 l/s (NS10)
Sludge trap size 1000 L
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene

Standard model
Class II according to EN858-1 standard
Flow rate 6 l/s (NS6)
Sludge trap size 600 L
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene

Standard model
Class II according to EN858-1 standard
Flow rate 30 l/s (NS30)
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene

Standard model
Class II according to EN858-1 standard
Flow rate 20 l/s (NS20)
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene

Standard model
Class II according to EN858-1 standard
Flow rate 15 l/s (NS15)
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene

Standard model
Class II according to EN858-1 standard
Flow rate 10 l/s (NS10)
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene

Standard model
Class II according to EN858-1 standard
Flow rate 6 l/s (NS6)
Installation depth 1,5 m from terrain to the bottom of the inlet pipe
Groundwater level below the tank‘s bottom
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 20 l/s (NS20)
Sludge trap size 4000 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 15 l/s (NS15)
Sludge trap size 3000 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 10 l/s (NS10)
Sludge trap size 2000 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 6 l/s (NS6)
Sludge trap size 1200 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 30 l/s (NS30)
Sludge trap size 3000 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 20 l/s (NS20)
Sludge trap size 2000 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 15 l/s (NS15)
Sludge trap size 1500 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 10 l/s (NS10)
Sludge trap size 1000 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 6 l/s (NS6)
Sludge trap size 600 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 30 l/s (NS30)
Sludge trap size 600 L
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 20 l/s (NS20)
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 15 l/s (NS15)
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 10 l/s (NS10)
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

Reinforced model
Class II according to EN858-1 standard
Flow rate 6 l/s (NS6)
Installation depth 2,5 m from terrain to the bottom of the inlet pipe
Material polyethylene

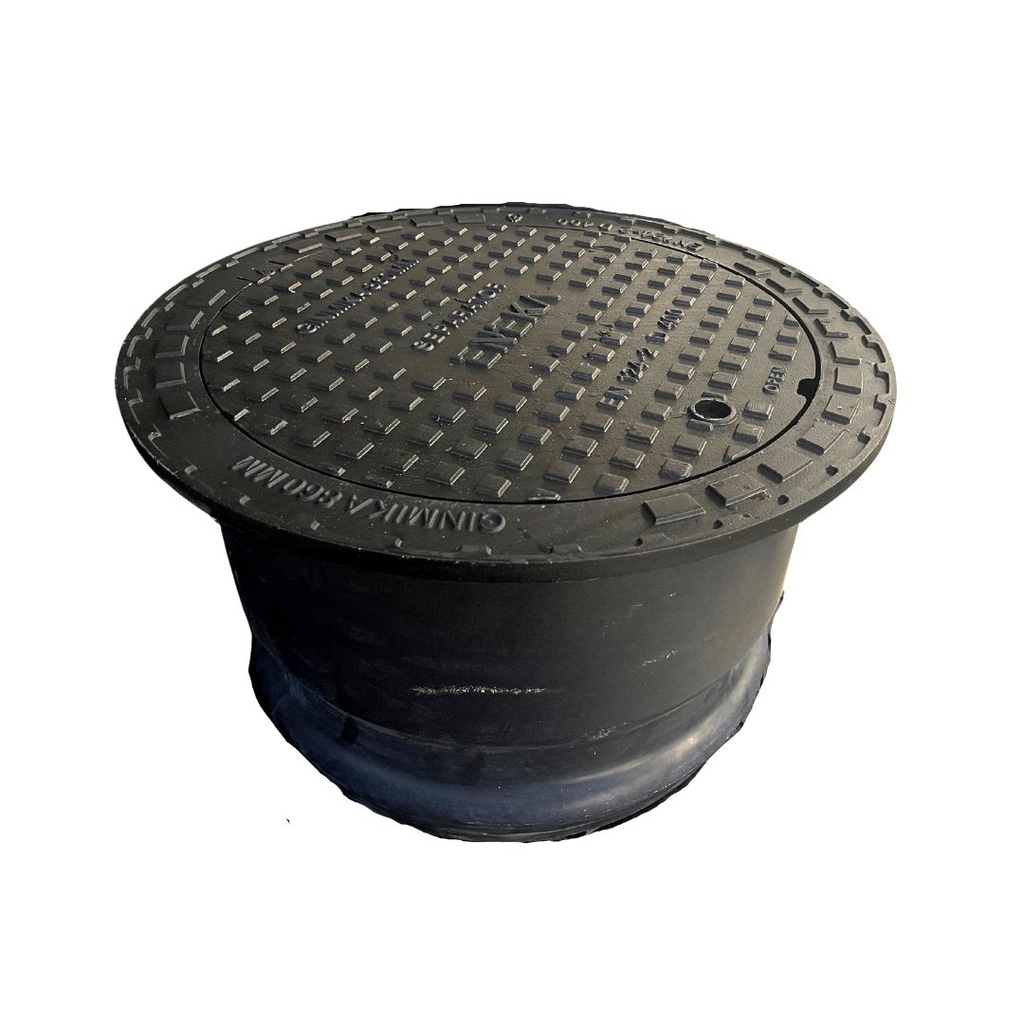

Cast/Ductile Iron lid
Class D400 (40 t) acc. EN124 standard
clear opening 600 mm
including telescopic part TP and seal

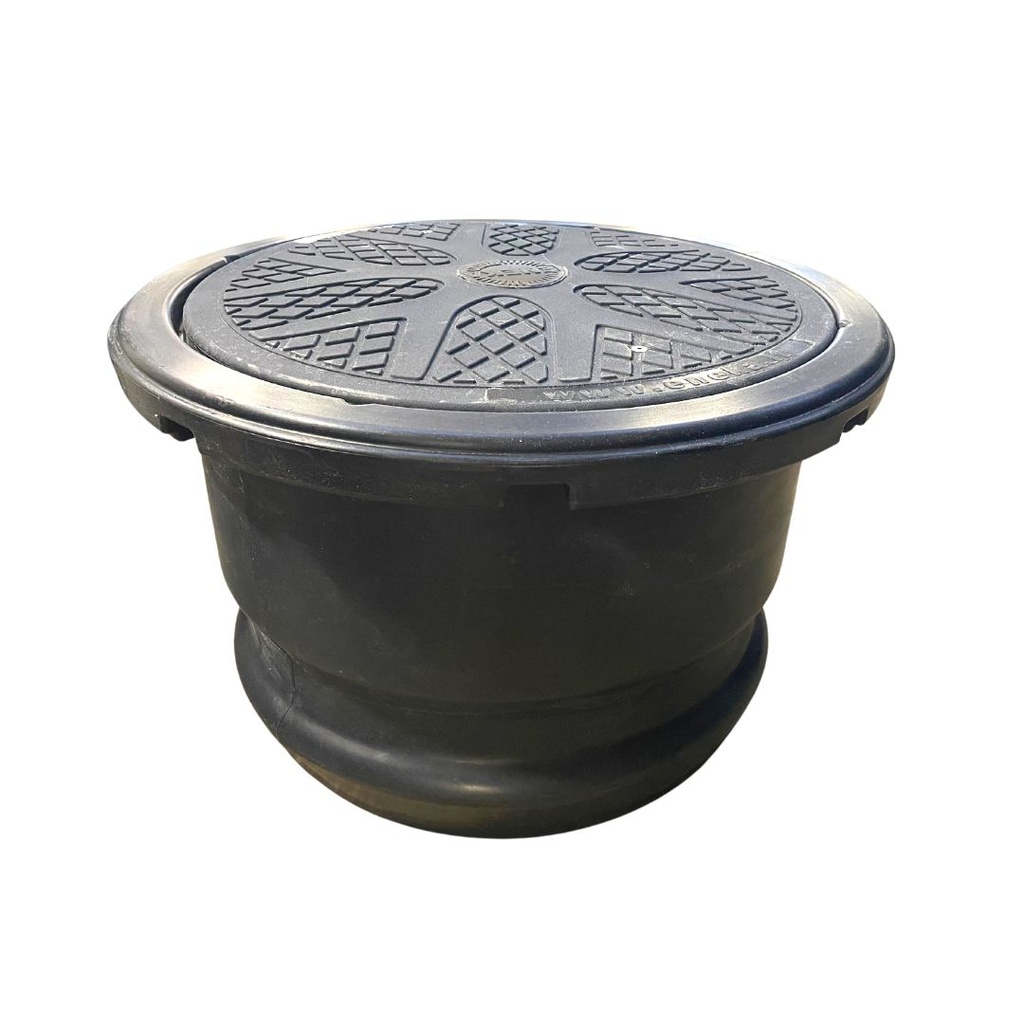

Polyethylene Lid Class A35 (3.5 t)
clear opening 600 mm
including telescopic part TP and seal

Program-controlled disposal

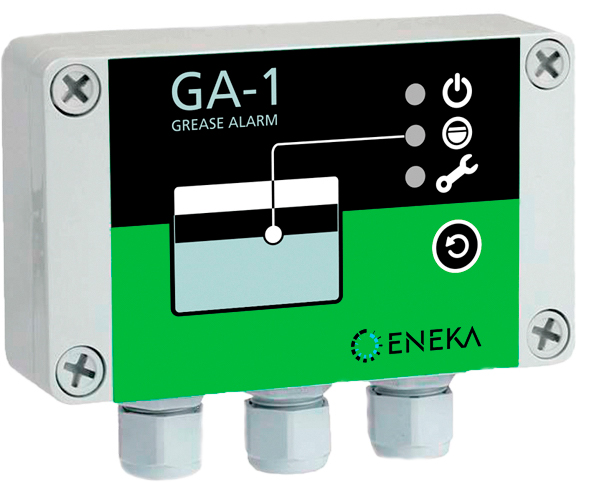

Integrated Grease Alarm
Connection to BMS

- Fully automated program-controlled type of cleaning and disposal
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Separator body made of PE
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Automatic Refilling Unit DN25, incl. syphon & solenoid valve
- Mixer with 2 stainless steel impellers, motor 0.55 W 400 V 50 Hz
- Shut-off / Gate valve at the pump inlet, incl. pipe branch and rubber coupling
- Disposal pump, heavy duty macerator pump, motor 2.6/2.3 kW 400V 50/60Hz, delivery head 19.5m max

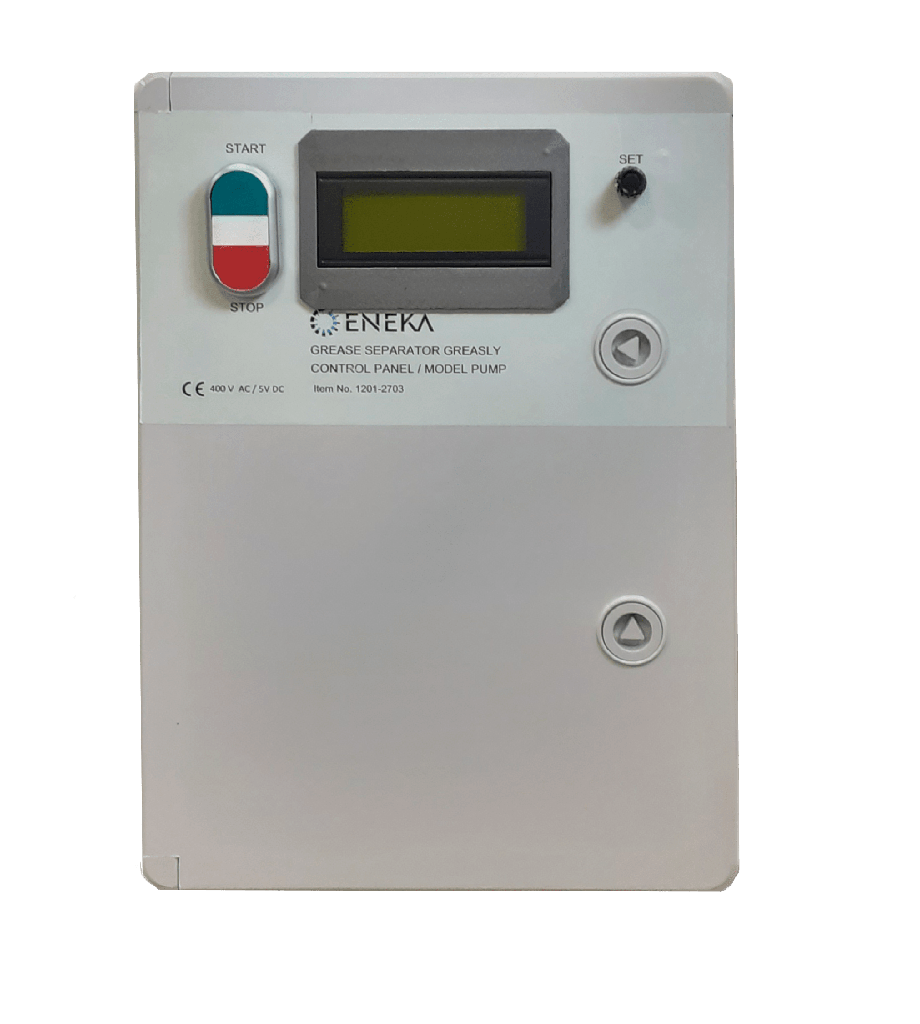

- Control panel for automatic program-controlled operation, with integrated grease alarm and BMS connection via volt-free contacts
- Flow rate: 15 L/S
- Sludge trap capacity: 1500 L
- Total capacity 3300 L

- Fully automated program-controlled type of cleaning and disposal
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Separator body made of PE
- Watertight / seamless one-piece body
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Automatic Refilling Unit DN25, incl. syphon & solenoid valve
- Mixer with 2x stainless steel impellers for grease&sludge, motor 0.55kW 400V 50Hz
- Shut-off / Gate valve DN80 at the pump inlet, incl. pipe branch and rubber coupling
-Disposal pump, heavy duty macerator pump, motor 2.6/2.3 kW 400V 50/60Hz, delivery head 19.5m max
- Control panel for automatic program-controlled operation, with integrated grease alarm and BMS connection via volt-free contacts
- Flow rate: 10 L
- Sludge trap capacity: 1000 L
- Total capacity: 2076 L
