- Fully automated program-controlled type of cleaning and disposal
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Separator body made of PE
- Watertight / seamless one-piece body
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Automatic Refilling Unit DN25, incl. syphon & solenoid valve
- Mixer with 2x stainless steel impellers, motor 0.55 W 400 V 50 Hz
- Shut-off / Gate valve DN80 at the pump inlet, incl. pipe branch and rubber coupling
- Disposal pump, heavy duty macerator pump, motor 2.6/2.3 kW 400V 50/60Hz, delivery head 19.5m max
- Control panel for automatic program-controlled operation, with integrated grease alarm and BMS connection via volt-free contacts
- Flow rate: 7 L/S
- Sludge trap capacity: 700 L
- Total capacity 1880 L

- Fully automated program-controlled type of cleaning and disposal
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Separator body made of PE
- Watertight / seamless one-piece body
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Automatic Refilling Unit DN20, incl. syphon & solenoid valve
- Mixer with 2 stainless steel impellers, motor 0,55 W 400 V 50 Hz
- Shut-off / Gate valve at the pump inlet, incl. pipe branch and rubber coupling
- Disposal pump, heavy duty macerator pump, motor 2.6/2.3 kW 400V 50/60Hz, delivery head 19.5m max
- Control panel for automatic program-controlled operation, with integrated grease alarm and BMS connection
- Flow rate: 4 L/S
- Sludge trap capacity: 400 L
- Total capacity 850 L

- Fully automated program-controlled type of cleaning and disposal
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Separator body made of PE
- Watertight / seamless one-piece body
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Automatic Refilling Unit DN20, incl. syphon & solenoid valve
- Mixer with 2 stainless steel impellers, motor 0,55 W 400 V 50 Hz
- Shut-off / Gate valve at the pump inlet, incl. pipe branch and rubber coupling
- Disposal pump, heavy duty macerator pump, motor 2.6/2.3 kW 400V 50/60Hz, delivery head 19.5m max
- Control panel for automatic program-controlled operation, with integrated grease alarm and BMS connection
- Flow rate: 2 L/S
- Sludge trap capacity: 200 L
- Total capacity 650 L

- Separator body made of double-wall PE
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Inspection window
- Extraction pipe, incl. rubber coupling
- Grease alarm type GA-1
- Manual Refilling Unit, incl. syphon with retainer, ball valve with bracket
- Mixer with 2 stainless steel impellers, motor 0,55kW 400V 50Hz
- Mixer Controller incl. 3ph switch, phase sequence & thermal relays
- Flow rate: 15 L/S
- Sludge trap capacity: 1500 L
- Total capacity 3300 L

- Separator body made of PE
- Watertight / seamless one-piece body
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Inspection window incl. wiper, stainless steel flange, seals
- Extraction pipe size DN80/65, incl. rubber coupling
- Grease alarm type GA-1
- Mixer with 2x stainless steel impellers for grease&sludge, motor 0,55kW 400V 50Hz
- Mixer Controller incl. 3ph switch, phase sequence & thermal relays
- Flow rate: 10 L/S
- Sludge trap capacity: 1000 L
- Total capacity 2076 L

- Separator body made of PE
- Watertight / seamless one-piece body
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Inspection window incl. wiper, stainless steel flange, seals
- Extraction pipe size DN80/65, incl. rubber coupling
- Grease alarm type GA-1
- Mixer with 2x stainless steel impellers for grease&sludge, motor 0,55kW 400V 50Hz
- Mixer Controller incl. 3ph switch, phase sequence & thermal relays
- Flow rate: 7 L/S
- Sludge trap capacity: 700 L
- Total capacity 1880 L

- Separator body made of PE
- Watertight / seamless one-piece body
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Inspection window incl. wiper, stainless steel flange, seals
- Extraction pipe size DN65, incl. rubber coupling
- Grease alarm type GA-1
- Mixer with 2x stainless steel impellers for grease&sludge, motor 0,55kW 400V 50Hz
- Mixer Controller incl. 3ph switch, phase sequence & thermal relays
- Flow rate: 4 L/S
- Sludge trap capacity: 400 L
- Total capacity 850 L

- Separator body made of PE
- Watertight / seamless one-piece body
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Inspection window incl. wiper, stainless steel flange, seals
- Extraction pipe size DN65, incl. rubber coupling
- Grease alarm type GA-1
- Mixer with 2x stainless steel impellers for grease&sludge, motor 0,55kW 400V 50Hz
- Mixer Controller incl. 3ph switch, phase sequence & thermal relays
- Flow rate: 2 L/S
- Sludge trap capacity: 200 L
- Total capacity 650 L

- Separator body made of double-wall PE
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Extraction pipe DN65, incl. rubber coupling
- Manual Refilling Unit DN20, incl. syphon with retainer, ball valve with bracket
- Flow rate: 15 L/S
- Sludge trap capacity: 1500 L
- Total capacity 3300 L

- Separator body made of PE
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Cover with seal and steel locking ring
- Watertight / seamless one-piece body
- Sloped interior base for complete sludge disposal
- Inspection window incl. wiper, stainless steel flange, seals
- Extraction pipe size DN80/65, incl. rubber coupling
- Manual Refilling Unit NS25, incl. syphon & ball valve
- Flow rate: 10 L/S
- Sludge trap capacity: 1000 L
- Total capacity 2076 L

- Separator body made of PE
- Watertight / seamless one-piece body
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Inspection window incl. wiper, stainless steel flange, seals
- Extraction pipe size DN80/65, incl. rubber coupling
- Manual Refilling Unit DN25, incl. syphon & ball valve
- Flow rate: 7 L/S
- Sludge trap capacity: 700 L
- Total capacity 1880 L

- Separator body made of PE
- Watertight / seamless one-piece body
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Inspection window incl. wiper, stainless steel flange, seals
- Extraction pipe DN65, incl. rubber coupling
- Manual Refilling Unit DN20, incl. syphon & ball valve
- Flow rate: 4 L/S
- Sludge trap capacity: 400 L
- Total capacity 850 L

- Separator body made of PE
- Watertight / seamless one-piece body
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Inspection window incl. wiper, stainless steel flange, seals
- Extraction pipe DN65, incl. rubber coupling
- Manual Refilling Unit DN20, incl. syphon & ball valve
- Flow rate: 2 L/S
- Sludge trap capacity: 200 L
- Total capacity 650 L

- Separator body made of double-wall PE
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Flow rate: 15 L/S
- Sludge trap capacity: 1500 L
- Total capacity 3300 L

- Separator body made of PE
- Watertight / seamless one-piece body
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Flow rate: 10 L/S
- Sludge trap capacity: 1000 L
- Total capacity 2076 L

- Separator body made of PE
- Watertight / seamless one-piece body
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Flow rate: 7 L/S
- Sludge trap capacity: 700 L
- Total capacity 1880 L

- Separator body made of PE
- Watertight / seamless one-piece body
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Flow rate: 4 L/S
- Sludge trap capacity: 400 L
- Total capacity 850 L

- Separator body made of PE
- Watertight / seamless one-piece body
- Manufactured and tested according to EN 1825 / DIN 4040 standards
- Cover with seal and steel locking ring
- Sloped interior base for complete sludge disposal
- Flow rate: 2 L/S
- Sludge trap capacity: 200 L
- Total capacity 650 L

Standard, installation depth <1,5 m
Flow rate 25 l/s
Groundwater level below the tank‘s bottom
Material PE
Integrated sludge trap

Standard, installation depth <1,5 m
Flow rate 20 l/s
Groundwater level below the tank‘s bottom
Material PE
Integrated sludge trap

Standard, installation depth <1,5 m
Flow rate 15 l/s
Groundwater level below the tank‘s bottom
Material PE
Integrated sludge trap

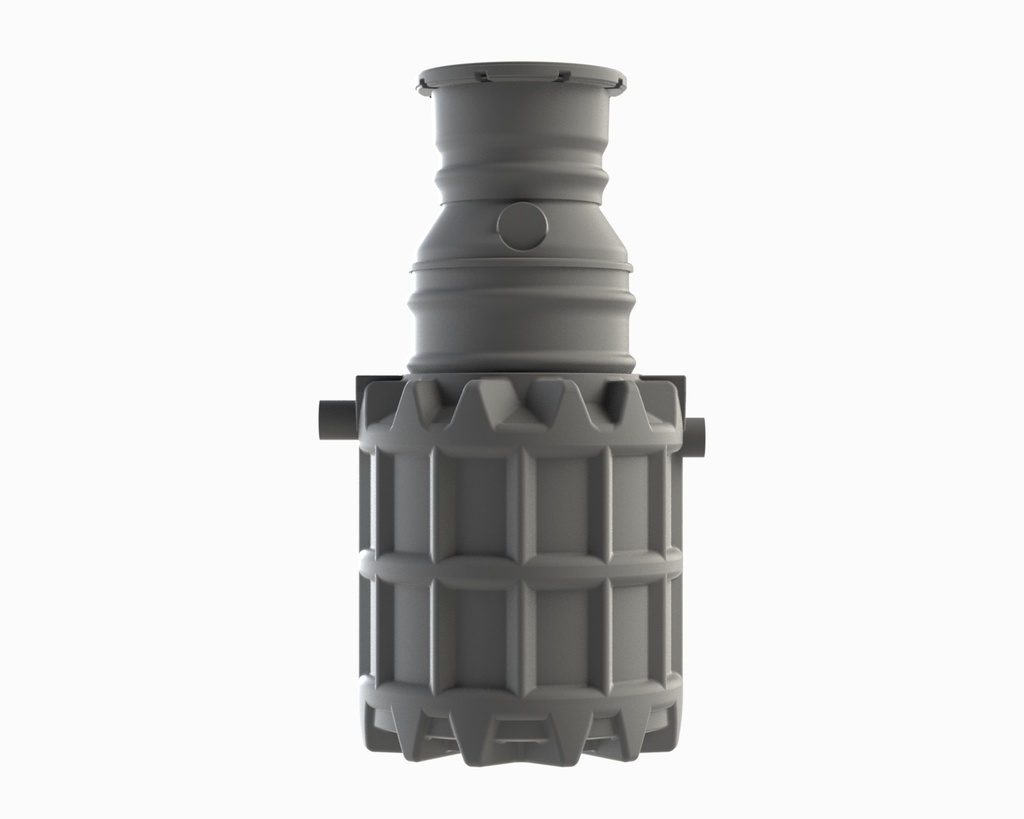

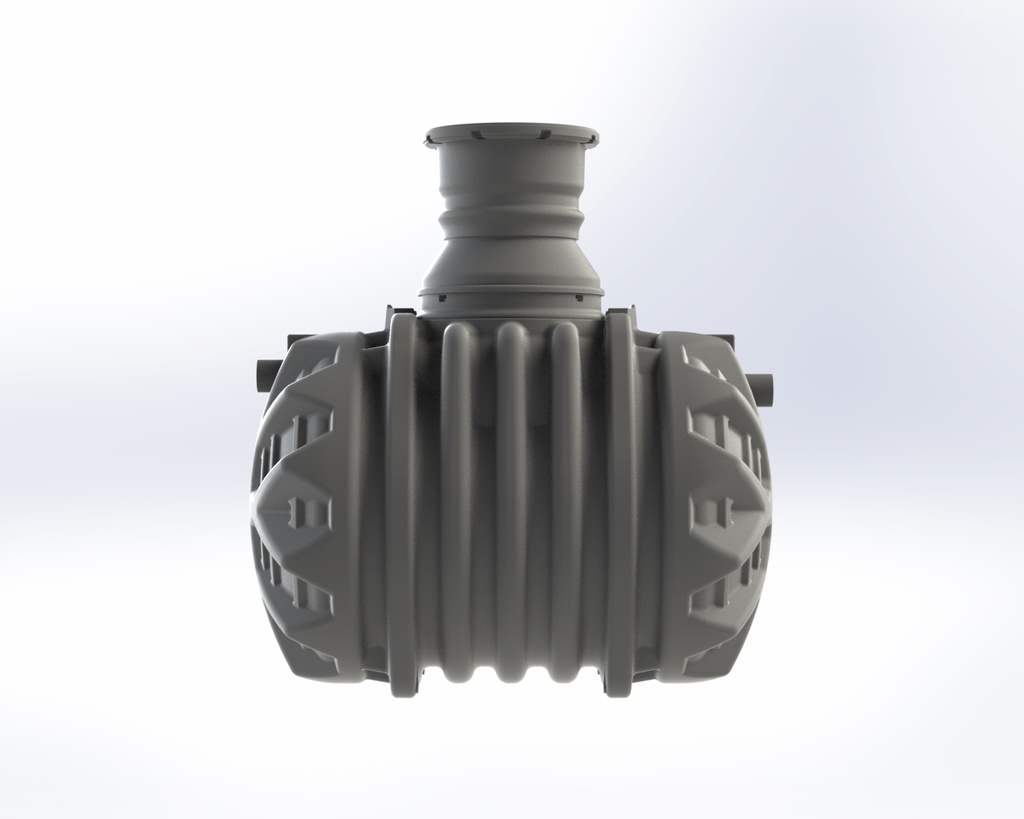

Underground Grease Separator
Standard model, installation depth <1,5 m
Flow rate 10 l/s
Groundwater level below the tank‘s bottom
Material PE
Integrated sludge trap

Standard, installation depth <1,5 m
Flow rate 7 l/s
Groundwater level below the tank‘s bottom
Material PE
Integrated sludge trap

Standard, installation depth <1,5 m
Flow rate 4 l/s
Groundwater level below the tank‘s bottom
Material PE
Integrated sludge trap

Standard, installation depth <1,5 m
Flow rate 2 l/s
Groundwater level below the tank‘s bottom
Material PE
Integrated sludge trap

Standard, installation depth <1,5 m
Flow rate 1 l/s
Groundwater level below the tank‘s bottom
Material PE
Integrated sludge trap

Reinforced, installation depth <2,5 m
Flow rate 25 l/s
Material PE
Integrated sludge trap

Reinforced, installation depth <2,5 m
Flow rate 20 l/s
Material PE
Integrated sludge trap

Reinforced, installation depth <2,5 m
Flow rate 15 l/s
Material PE
Integrated sludge trap

Reinforced, installation depth <2,5 m
Flow rate 10 l/s
Material PE
Integrated sludge trap
